Exploring the Advantages and Process of Aluminum Gravity Casting


  Aluminum gravity casting, a widely used manufacturing technique, offers numerous advantages that make it a preferred choice for producing intricate and complex metal components. This method leverages the force of gravity to fill molds with molten aluminum, ensuring precise and high-quality parts for various industries. In this article, we delve into the process, benefits, and applications of aluminum gravity casting.

The Aluminum Gravity Casting Process

Pattern Creation: The process begins with the creation of a pattern that replicates the desired part. This pattern is typically made from wood, plastic, or metal and serves as a template for the mold.

Mold Preparation: A mold, usually made from a mixture of sand and other binding materials, is created around the pattern. Once the mold is ready, it is separated into two halves to allow for pattern removal and casting.

Pattern Removal and Mold Assembly: The pattern is removed from the mold, leaving behind a cavity in the shape of the intended part. The mold is then securely reassembled, ready for casting.

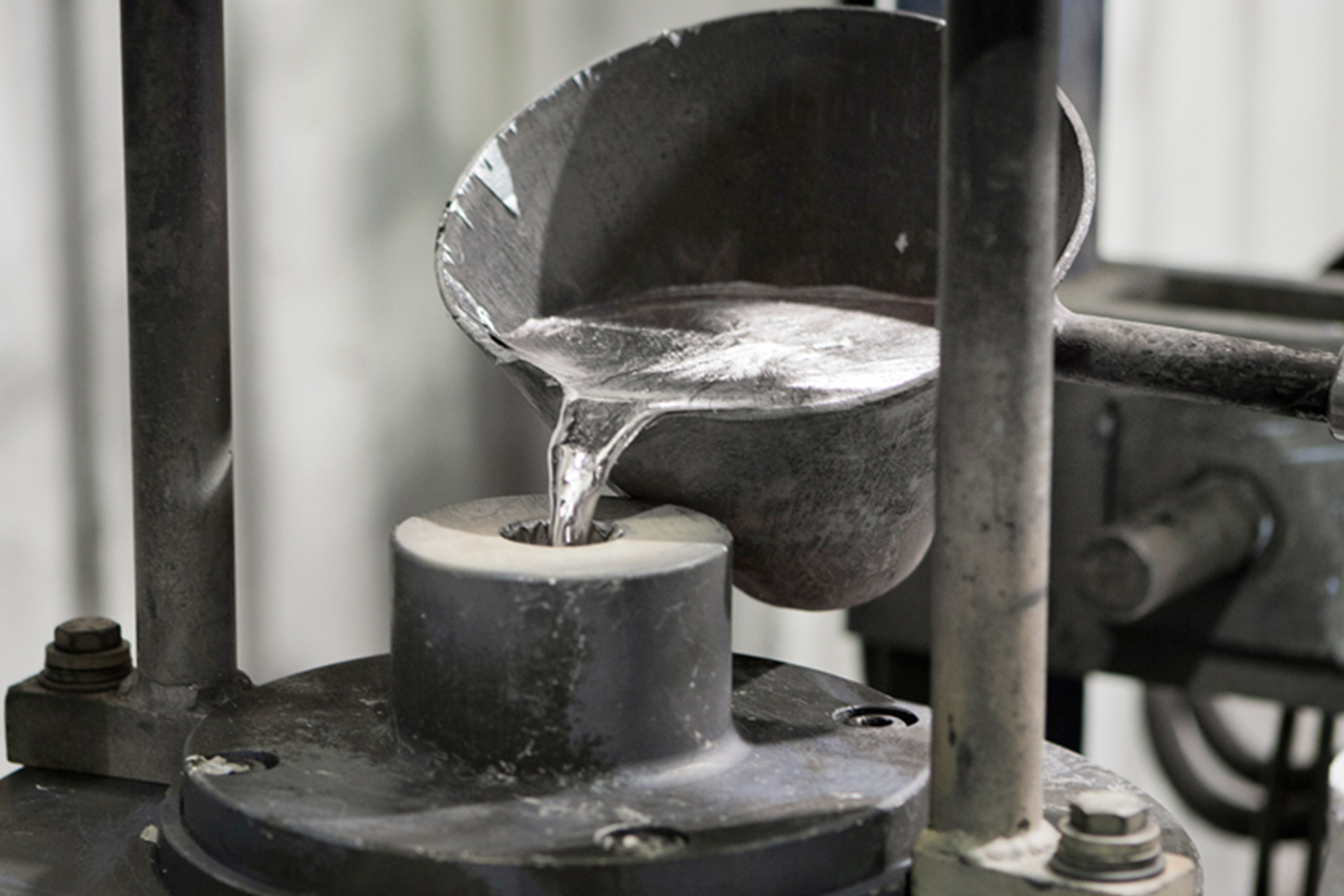

Melting and Pouring: Aluminum ingots are melted in a furnace, reaching temperatures around 1200°C (2192°F). Once the molten aluminum reaches the desired temperature, it is poured into the prepared mold using gravity. The aluminum fills the mold, taking on the shape of the cavity.

Solidification and Cooling: After pouring, the molten aluminum starts to cool and solidify within the mold. The cooling rate is crucial for achieving the desired mechanical properties of the final part.

Mold Removal and Finishing: Once the aluminum has solidified, the mold is opened, and the casting is removed. Excess material, known as flash, is trimmed, and the part undergoes further finishing processes such as machining, sandblasting, and polishing.

Advantages of Aluminum Gravity Casting

Complex Geometries: Gravity casting allows for the production of intricate and complex parts with fine details and thin walls.

Smooth Surface Finish: The process yields parts with excellent surface finishes, reducing the need for extensive post-processing.

Cost-Effective: Compared to other casting methods, aluminum gravity casting is relatively cost-effective for small to medium production runs.

Dimensional Accuracy: Gravity casting ensures high dimensional accuracy and tight tolerances, minimizing the need for additional machining.

Reduced Porosity: The controlled pouring of molten aluminum reduces the occurrence of porosity in the final casting, enhancing part integrity.


Aluminum gravity casting finds applications across various industries:

Automotive: Engine components, transmission housings, and intake manifolds.

Aerospace: Aircraft engine parts, structural components, and landing gear components.

Consumer Electronics: Aluminum casings for laptops, tablets, and smartphones.

Industrial Machinery: Pump housings, valve bodies, and gearboxes.

Energy Sector: Heat sinks, electrical connectors, and renewable energy components.


Aluminum gravity casting combines precision, cost-effectiveness, and the ability to create complex parts, making it an essential manufacturing process across multiple industries. From automotive to aerospace and beyond, this casting method continues to play a pivotal role in producing high-quality aluminum components that drive innovation and progress.
