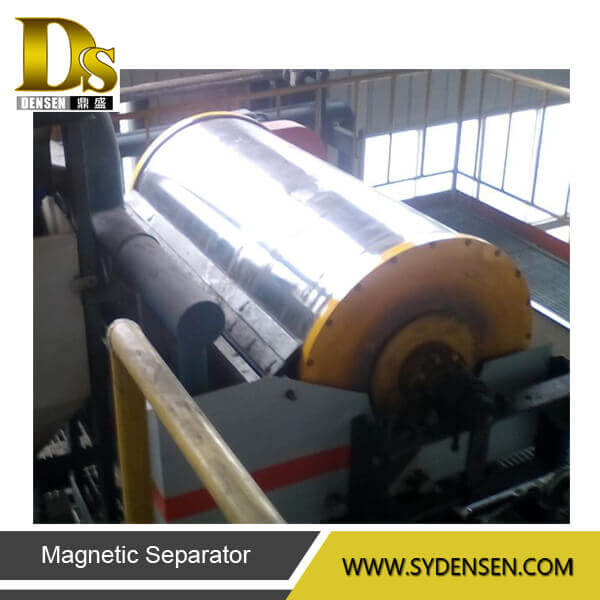

Wet Type Mineral Processing Magnetic Drum Separato

Condition: New
Item: Magnetic separator iron ore
Color: as required
Capacity: as required
Type: Magnetic Separator
Min. Order Quantity: 1 Set/Sets
Supply Ability: 50 Set/Sets per Month
Port: Dalian
Payment Terms: L/C,T/T, Western Union
Certification: ISO9001
Warranty: 12 month, 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Place of Origin: Liaoning, China (Mainland), Liaoning, China
Quantity:
Inquire

  • CTS1015

  • JSYY

  • High

  • standard

  • 4.0kw

  • 1050x1500mm

  • depend on model

  • 60~700mT

  • 30~55t/h or 95m3/h

  • 28rpm

  • carbonate, manganese, oxide

  • Strong and weak magnet, such as ferr

7#Product Description
Based on the structure, Wet Type Mineral Processing Magnetic Drum Separator can be divided into reverse-flow(CTN), parallel-flow(CTS) and half reverse-flow （ CTB ） . CTN is used for the dense medium recycling, during which the particle size between 0 ～ 0.6mm. CTB is widely used in the links of primary selecting and finished recycling of mine industry, during which the particle size between 0 ～ 0.6mm. The particle size of the CTS recycling process is between 0 ～ 6mm, which is widely used in mine wet type primary selecting, and is widely used in some process of larger particle size instead of CTB. With recent years’ improvement of technology, CTS become widely used in tails recycling and sea sand iron recycling. Combining with foreign technological development and processing requirement, we put forward the half reverse-flow separator and low-intensity magnetic separator for more areas.
Features
1. High magnetic recovery and discharge.
2. The feed slurries recover the magnetics.
3. Available in single or multiple drum applications.
4. Recover magnetic solids in as clean a magnetic concentrate as possible.
5. Permanent magnet assembly eliminates coil burn-outs.
6. The magnet / pole elements are bolted to a mild steel shaft.
7. The drum is made from thick stainless steel for long service life.
Wet Type Mineral Processing Magnetic Drum Separato
Working principle
There are three types of this item:
TYPE Grain-Size(mm) Applications
CTB 0-0.6 Concentration of mine
CTN 0-0.6 Heavy medium recovery
CTS 0-6 Tailing recycling
Wet Type Mineral Processing Magnetic Drum Separato
Specification
Magnetic separator iron ore type Drum Specs  Rotation speed(rpm) Handling Capacity Motor Power
Dia(mm) Length(mm) t/h m3/h kw
CTB/N/S44 400 400 45 1~2 3 1.1
CTB/N/S46 400 600 45 1~3 5 1.1
CTB/N/S63 600 300 40 3~5 8 1.1
CTB/N/S66 600 600 40 5~10 16 1.1
CTB/N/S69 600 900 40 8~15 24 1.1
CTB/N/S612 600 1200 40 10~20 32 2.2
CTB/N/S618 600 1800 40 15~30 48 2.2
CTB/N/S712 750 1200 35 15~30 48 3.0
CTB/N/S718 750 1800 35 20~45 72 3.0
CTB/N/S912 900 1200 28 18~30 45 4.0
CTB/N/S918 900 1200 28 25~55 90 4.0
CTB/N/S924 900 1800 28 35~70 110 4.0
CTB/N/S1015 1050 1500 21 30~55 95 4.0
CTB/N/S1018 1050 1800 21 40~75 120 5.5
CTB/N/S1021 1050 2100 21 45~88 140 5.5
CTB/N/S1024 1050 2400 21 52~100 160 5.5
CTB/N/S1027 1050 2700 21 60~110 180 7.5
CTB/N/S1030 1050 3000 21 65~125 200 7.5
CTB/N/S1218 1200 1800 19 47~90 140 5.5
CTB/N/S1224 1200 2400 19 82~120 192 7.5
CTB/N/S1230 1200 3000 19 80~150 240 7.5
Other products
Wet Type Mineral Processing Magnetic Drum Separato
Packaging & Shipping
1. Packing: Export packing
2. Shipping time: 30 days after receive the deposit
Wet Type Mineral Processing Magnetic Drum Separato
Our service
With well-equipped professional engineers and strong technical ability, our company has been in this field for 10 years.
1. We cooperate with superior suppliers (Nord &Schneider)to ensure the quality.
2. Tests of materials are freely checked for the required quality of the equipment before packing.
3. Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support .
4."Keep Improving, Pursuing Excellence" would be kept forever.
Wet Type Mineral Processing Magnetic Drum Separato
WORKSHOPS
Wet Type Mineral Processing Magnetic Drum Separato
WHY BUY FORM US
Wet Type Mineral Processing Magnetic Drum Separato
FAQ
1. What is the MOQ of your machine?
A: Our MOQ is 1 set
2. How long is the machine warranty period?
A: The product warranty period is 12 months
