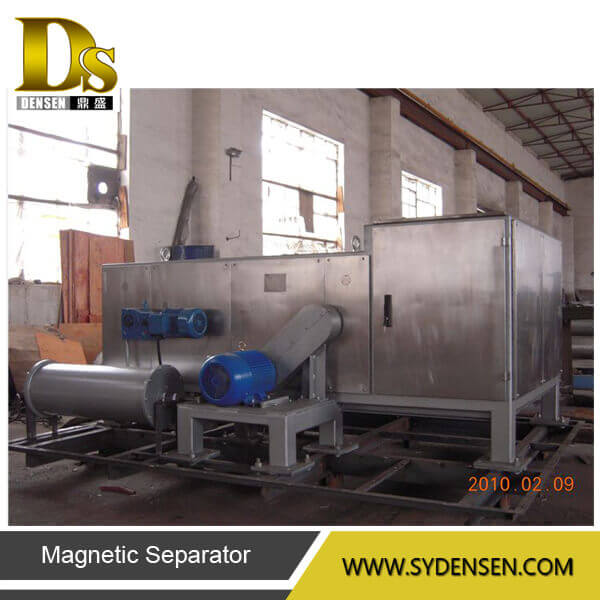

Eddy Current Separator for PET Recycling

Condition: New
Type: Magnetic Separator
Min. Order Quantity: 1 Set/Sets customer design
Supply Ability: 50 Set/Sets per Month
Port: Dalian
Payment Terms: L/C,T/T, Western Union
Certification: ISO 9001
Warranty: 12 months
After-sales Service Provided: Engineers available to service machinery overseas
Place of Origin: Liaoning, China (Mainland)
Quantity:
Inquire

  • ECS-40

  • JSYY

  • standard

  • 3.0/0.75kw

  • 2080x1357x1100mm

  • 900kg

  • as required

  • as required

  • Forbo Siegling

Product Description
Eddy current separator is mainly used to recycle copper, aluminum and other non-ferrous metals from industrial waste and solid waste. It is widely used in environmental protection industries, like waste classification, waste electrical and electronic equipment recycling, and the treatment of non-ferrous metal industrial materials. The separating efficiency is of a wide range of non-ferrous metals, which features strong adaptability, and reliable mechanical structure, high efficiency in separation.
Working Principle:
The PET Eddy Current system consists of a short belt conveyor with its drive located at the return end. The ECS rotor, which is fitted at the discharge end of the conveyor, is constructed using a high-intensity rare earth (neodymium iron-boron) magnet system and sits inside a non-metallic rotor cover. The rotor, when spinning at high speeds, induces an electric current into conducting metals. This induced electric current produces a magnetic field, which opposes that of the rotor, repelling non-ferrous metals over a splitter plate. The remaining materials free-fall over the rotor, separated from the materials that are being repelled.
Applications:
1. Separation of aluminum cans and ferrous metals.
2. Separate non-ferrous metals from the bottom ash of boiler.
3. Separate non-ferrous metals from the glass scrap.
4. Separate non-ferrous metal impurities in some production lines(such as plastic recycling production line).
Advantages:
1. Rich experience in design and production can ensure mature product technology, stable performance and reliable quality
2. Mature technology, stable quality.
3. Simple structure, easy and convenient to install, operate and maintain.
Specification:
Model Belt Width Motor Power Dimension  (mm) Weight
mm Kw Length Width High Kg
ECS-40 450 3.0/0.75 2080 1357 1100 1100
ECS-65 650 4.0/1.5 3300 1500 1200 1200
ECS-80 800 5.5/1.5 3300 1700 1200 1400
ECS-100 1000 5.5/1.5 3300 1900 1200    1600
ECS-120 1200 5.5/2.2 3300 2000 1200 1800
ECS-140 1400 7.5/2.2 3620 2130 1587 2100
ECS-150 1500 7.5/2.2 3420 2240 1530 2200
ECS-180 1800 7.5/2.2 3300 2700 1200 2800

Eddy Current Separator for PET Recycling Eddy Current Separator for PET Recycling
Eddy Current Separator for PET Recycling
Eddy Current Separator for PET Recycling
Eddy Current Separator for PET Recycling
Packaging & Shipping
1. Packing: Export packing
2. Shipping time: 30 days after receive the deposit
Eddy Current Separator for PET Recycling
Our service
With well-equipped professional engineers and strong technical ability, our company has been in this field for 10 years.
1. We cooperate with superior suppliers (Nord &Schneider)to ensure the quality.
2. Tests of materials are freely checked for the required quality of the equipment before packing.
3. Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support .
4."Keep Improving, Pursuing Excellence" would be kept forever.
Eddy Current Separator for PET Recycling
WORKSHOPS
Eddy Current Separator for PET Recycling
WHY BUY FORM US
Eddy Current Separator for PET Recycling
FAQ
1. What is the MOQ of your machine?
A: Our MOQ is 1 set
2. How long is the machine warranty period?
A: The product warranty period is 12 months
