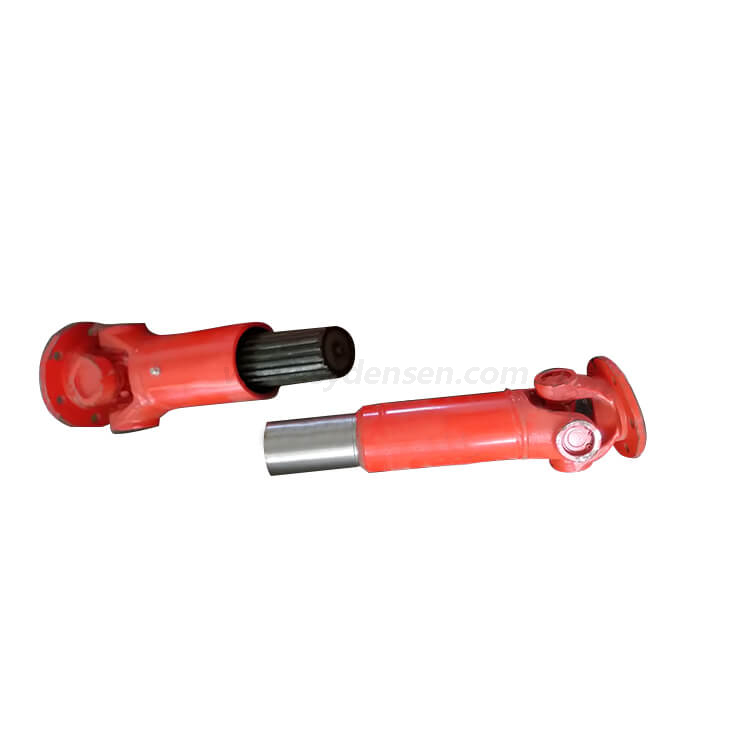

Densen customized SWC-BF Type universal coupling,universal joint couplings,universal joint shaft couplings

Place of Origin:Liaoning, China
Brand Name:Densen customized
Material:Steel
Standard or Nonstandard:Standard
Structure:Universal
Flexible or Rigid:Flexible
Applicable Industries:Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Energy & Mining, metallurgy/engineering
color:Red,yellow, blue etc.
Availability:
Quantity:
  • Customized

  • DS

Densen customized SWC-BF Type universal coupling,universal joint couplings,universal joint shaft couplings

Product Name Densen customized SWC-BF Type universal coupling,universal joint couplings,universal joint shaft couplings
DN mm 160~640mm
Axis Angle 25/15°
Rated Torque 16~1250 N·m
Fatigue torque 8~630N·m
Material 35CrMo
Application Widely used in metallurgy, mining, engineering and other fields.



Technical Data



.jpg

Company Information
Equipment


Application Case

Typical case of diaphragm coupling applied to variable frequency speed control equipment



JMB type coupling is applied to Daqing Oilfield Thermal Power Plant



According to the requirements of Daqing Electric Power Corporation, Daqing Oilfield Thermal Power Plant should dynamically adjust the power generation according to the load of the power grid and market demand, and carry out the transformation of the frequency converter and the suction fan. The motor was originally a 1600KW, 730RPM non-frequency variable speed motor matched by Shenyang Motor Factory. The speed control mode after changing the frequency is manual control. Press the button speed to increase 10RPM or drop 10RPM. The coupling is still the original elastic decoupling coupling, and the elastic de-coupling coupling after frequency conversion is frequently damaged, which directly affects the normal power generation.



It is found through analysis that in the process of frequency conversion speed regulation, the pin of the coupling can not bear the inertia of the speed regulation process (the diameter of the fan impeller is 3.3 meters) and is cut off, which has great damage to the motor and the fan.



Later, they switched to the JMB460 double-diaphragm wheel-type coupling of our factory (patent number: ZL.99246247.9). After 1 hour of destructive experiment and more than one year of operation test, the equipment is running very well, and there is no Replace the diaphragm. 12 units have been rebuilt and the operation is in good condition.


Other Application Case


Spare parts


Packaging & Shipping


Contact us





Previous:
Next:

  • Q Are you a manufacturer or a trader?

    A
    We have our own foundry ,forging factory and machinery shop located in Liaoning Province, China.
  • Q What can you do for customer?

    A
    One Stop Service
    1).Manufacturing and supply various machinery parts.
    2). Technical analysis and design
    3).Factory audit, on-site production supervision, in-time feedback, pre-shipment quality inspection
  • Q How could you commit the product quality?

    A
    1) all our factories were ISO certified.
    2) more than 50% of New Densen’s products were sold to worldwide top 500 companies
    which located in North American, Western Europe, and Japan.
    3) New Densen’s QC engineers will do on-site supervision and before EX-work quality inspection. New Densen will issue inspection reports for customers’ approval before EX-work. New Densen will be responsible for its reports and every parts no matter how long sold to customers.
  • Q How long shall we get the quotation?

    A
    Processing time for inquiry: 1-3 working days.
  • Q What's the process of developing a new steel casting product?

    A
    The procedure for new project develop as below:
    1. Technical department analyze the drawings all details

    2.Pattern design and manufacture

    3.Casting Process

    4.Quality Control inspect the casting parts

    5.Issue inspection report for customer to check quality

    6. After inspection report approved, Logistics Department help arrange the shipping to customer
