Why Investment Casting Is The "Gold Standard" for High-Performance Stainless Steel Pumps & Valves

In the fluid handling industry, reliability is non-negotiable. Discover why investment casting (lost-wax process) is the preferred method for manufacturing stainless steel pump impellers and valve bodies, offering superior corrosion resistance, intricate internal geometries, and unmatched pressure integrity.

1. The Critical Demand for Precision in Fluid Control

Pumps and valves often operate in the most demanding environments—from corrosive chemical processing to high-pressure oil and gas systems. For these applications, sand casting often falls short due to surface roughness and internal defects.

Investment casting bridges the gap, providing a "near-net shape" solution that ensures fluid efficiency and long-term durability.

2. Key Advantages for Pump & Valve Engineering

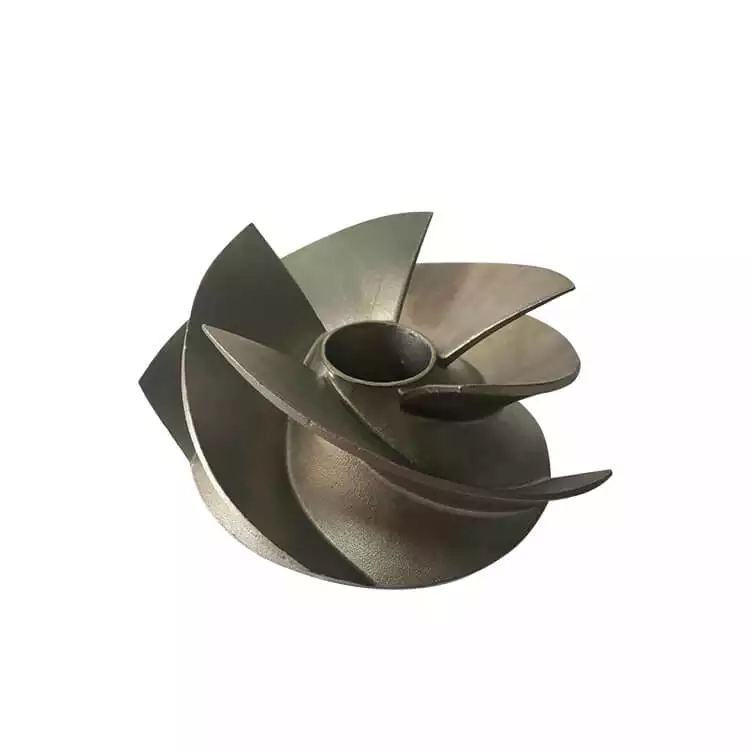

A. Intricate Internal Channels & Impeller Vanes

One of the biggest challenges in pump manufacturing is creating the complex internal curves of impellers.

Investment casting allows for smooth, precise internal vanes that minimize turbulence and maximize hydraulic efficiency.

Sand casting creates rough channels that lead to cavitation; investment casting’s smooth finish (Ra 3.2 or better) significantly extends the pump’s lifecycle.

B. Superior Corrosion Resistance (Alloy Integrity)

Stainless steel alloys like CF8M (316 SS) and CF3M (316L SS) are expensive.

The Benefit: The lost-wax process minimizes material waste. More importantly, the controlled cooling in ceramic shells ensures a more uniform grain structure, enhancing the metal's resistance to intergranular corrosion.

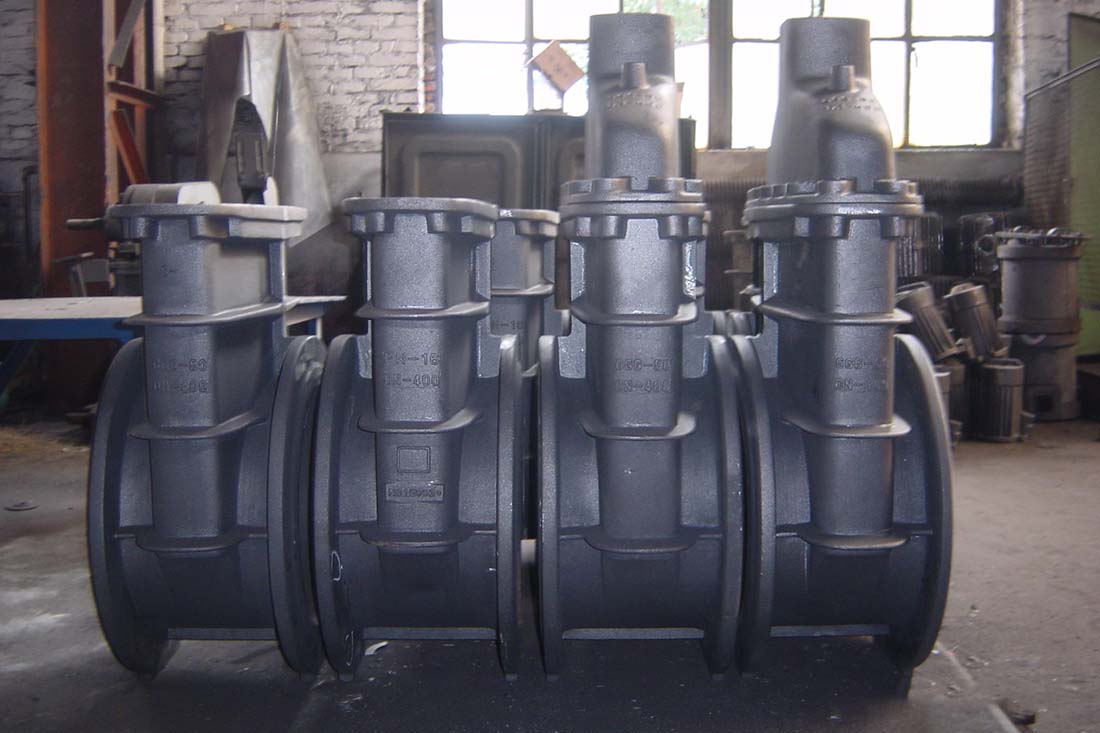

C. Zero-Leakage Pressure Integrity

Valves must withstand extreme pressure ratings (Class 150 to Class 2500).

The Benefit: Investment casting reduces the risk of porosity. A solid, dense casting means the valve body can pass rigorous hydrostatic and pneumatic pressure tests without weeping or failure.

3. Technical Deep-Dive: Common Alloys for Pump/Valve Casting

This table adds high "Information Gain" and authority.

4. Overcoming the "High Cost" Myth

While the initial tooling for a stainless steel gate valve might be higher than sand casting, the **Total Cost of Ownership (TCO) is lower:

1.  Reduced Machining: Valve seats and flange faces require minimal finishing.

2.  Weight Optimization: You can design thinner, stronger walls, reducing the total weight of stainless steel used.

3.  Consistency: 100% repeatability for high-volume actuator components.

 5. Quality Control: Ensuring Valve Safety

To rank well on Google, we must mention safety standards. A premium casting partner should provide:

Spectrographic Analysis: Ensuring the Nickel and Molybdenum content is exactly per spec.

PT (Dye Penetrant Testing): To detect any surface micro-cracks in valve bodies.

Wall Thickness Ultrasonic Testing: Ensuring the valve meets the minimum wall thickness required by ASME B16.34.

 6. Conclusion: The Future of Fluid Handling

For engineers designing the next generation of high-efficiency pumps and leak-proof valves, investment casting is not just an option—it is a strategic advantage. It combines the metallurgical excellence of stainless steel with the geometric freedom of the lost-wax process.
