Traditional process - gravity casting

Views: 3     Author: Site Editor     Publish Time: 2023-05-25      Origin: Site

Traditional process - gravity casting

  Gravity casting, also known as permanent mold casting, is a widely used casting process for manufacturing metal parts. This article will provide an overview of the gravity casting process, its advantages, and its applications.

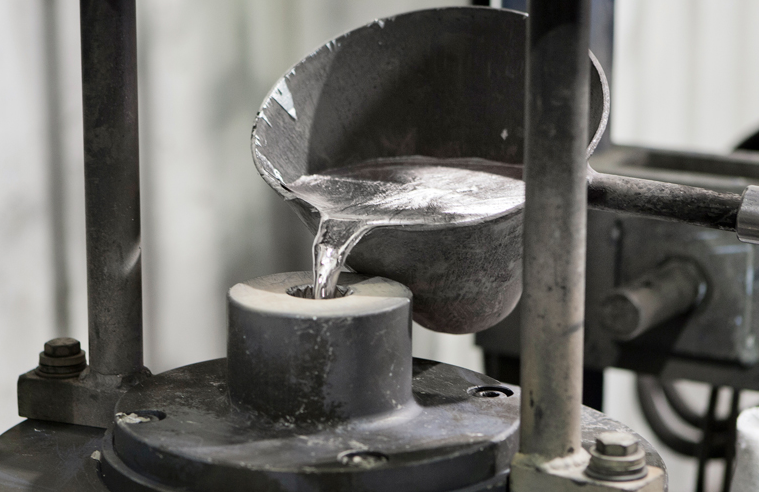

  The gravity casting process involves pouring molten metal into a reusable metal mold or die, which is typically made of steel or cast iron. The mold is preheated to a specific temperature to enhance the flow and solidification of the metal. The molten metal is then poured into the mold using gravity, hence the name "gravity casting."

  During the pouring process, the gravity helps to fill the mold cavity with the molten metal. The molten metal cools and solidifies inside the mold, taking the shape of the mold cavity. Once the metal has solidified, the mold is opened, and the casting is removed.

  One of the key advantages of gravity casting is its ability to produce parts with excellent dimensional accuracy and surface finish. The controlled filling of the mold with molten metal helps minimize defects such as shrinkage and porosity. This results in high-quality castings that often require minimal post-processing.


  Gravity casting is suitable for various metals, including aluminum, brass, and zinc alloys. Aluminum gravity casting is particularly common due to the lightweight properties and excellent mechanical characteristics of aluminum alloys. The process is used in the production of a wide range of parts, such as automotive components, household appliances, industrial equipment, and decorative pieces.

  There are two main types of gravity casting techniques: permanent mold casting and die casting. Permanent mold casting involves the use of a reusable mold made of metal, while die casting utilizes a similar process but employs a mold made of steel. Die casting is typically used for high-volume production, while permanent mold casting offers more flexibility for smaller production runs.

  The gravity casting process offers several advantages. It allows for the production of intricate and complex shapes, as well as parts with thin walls and fine details. The process is relatively cost-effective, especially for medium to large-sized production runs. It also provides good mechanical properties and dimensional consistency in the final castings.

  However, gravity casting also has some limitations. It may not be suitable for parts that require extremely tight tolerances or have complex internal features. The process also requires careful mold design and maintenance to ensure consistent casting quality.

  In conclusion, gravity casting is a widely used casting process that offers several advantages in terms of dimensional accuracy, surface finish, and cost-effectiveness. With its ability to produce high-quality castings, gravity casting is a popular choice for various industries and applications.

  • Q Are you a manufacturer or a trader?

    We have our own foundry ,forging factory and machinery shop located in Liaoning Province, China.
  • Q What can you do for customer?

    One Stop Service
    1).Manufacturing and supply various machinery parts.
    2). Technical analysis and design
    3).Factory audit, on-site production supervision, in-time feedback, pre-shipment quality inspection
  • Q How could you commit the product quality?

    1) all our factories were ISO certified.
    2) more than 50% of New Densen’s products were sold to worldwide top 500 companies
    which located in North American, Western Europe, and Japan.
    3) New Densen’s QC engineers will do on-site supervision and before EX-work quality inspection. New Densen will issue inspection reports for customers’ approval before EX-work. New Densen will be responsible for its reports and every parts no matter how long sold to customers.
  • Q How long shall we get the quotation?

    Processing time for inquiry: 1-3 working days.
  • Q What's the process of developing a new steel casting product?

    The procedure for new project develop as below:
    1. Technical department analyze the drawings all details
    2.Pattern design and manufacture
    3.Casting Process
    4.Quality Control inspect the casting parts
    5.Issue inspection report for customer to check quality
    6. After inspection report approved, Logistics Department help arrange the shipping to customer
