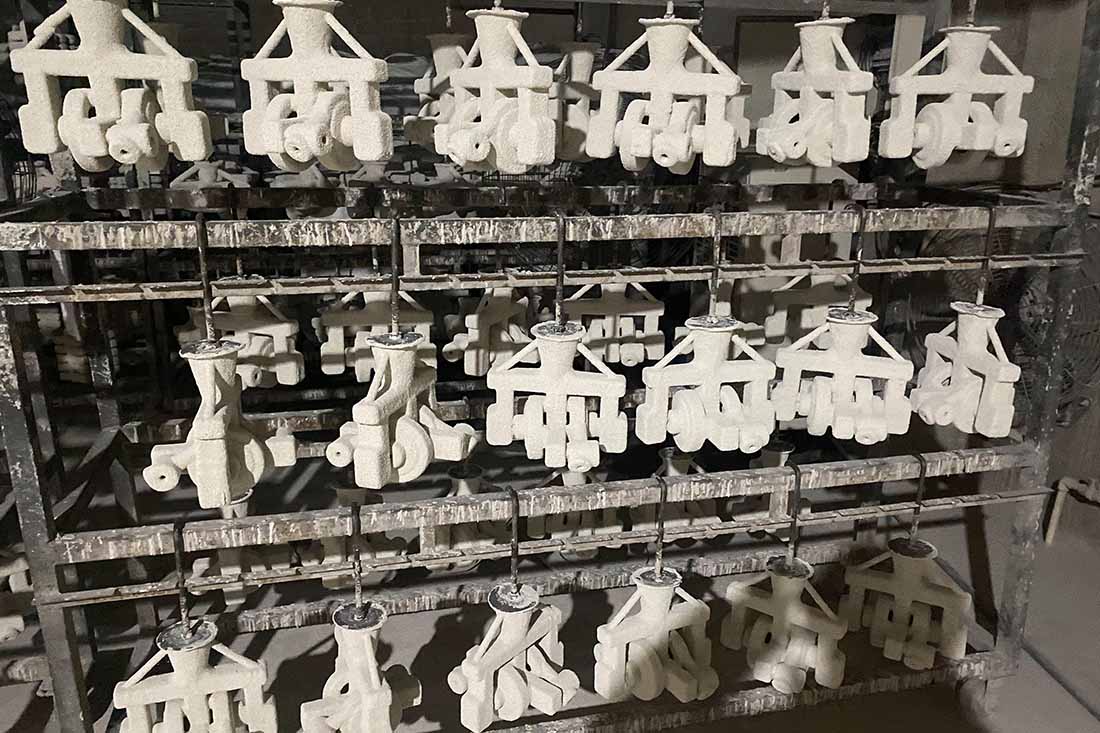

Silica Sol Shell Investment Casting: The Key To High-Quality Precision Castings And Cost Optimization

Silica sol shell technology has been widely recognized by the global investment casting industry as one of the most advanced and reliable processes for producing high-precision cast components. It delivers outstanding advantages such as excellent surface finish, low rework and rejection rates, stable quality performance, and broad material adaptability.

In modern precision casting production, the cost-effectiveness of investment castings is largely determined by the performance and cost of the shell system. This is not only influenced by the binder (silica sol), but also closely related to refractory materials (sand and powder), which account for nearly 90% of the shell’s total mass fraction.

Development and Industrial Application

Since the early 1990s, We introduced the medium-temperature wax – silica sol shell process. Over the past decades, the technology has developed rapidly, and nearly a thousand investment casting foundries have adopted it.

At the same time, many manufacturers previously using water glass shell systems have gradually shifted to low-temperature wax – silica sol shell systems. Industrial practice has shown that this process offers significant advantages when producing medium-to-large castings (10–200 kg), compared with traditional medium-temperature wax systems.

However, despite its technical advantages, silica sol shell technology still faces three major limitations:

• High production cost

• Long manufacturing cycle

• Poor knock-out (de-shelling) performance

These factors have prevented full replacement of water glass and composite shell systems in many markets.

For low-value-added commercial castings with moderate requirements for surface quality and dimensional accuracy, cost remains the dominant factor in market competition.

2. Fundamental Requirements of Refractory Materials for Silica Sol Shells

2.1 High Refractoriness and Thermal Stability

Silica sol shells must withstand high-temperature firing at 1000–1200°C (0.5–1 hour holding time). During gravity pouring, the shell is also subjected to high-temperature molten metal erosion and static pressure.

Therefore, the shell material must provide:

• High high-temperature strength (creep resistance)

• Excellent thermochemical stability

• Resistance to reactions with metal oxides or alloying elements

At high temperatures, the shell must not form low-melting phases that could cause deformation, cracking, sintering defects, or metal penetration.

Temperature Requirements Depend on Alloy Type

The required refractory performance varies depending on the casting material:

• Stainless steel / heat-resistant steel: 1600–1700°C pouring temperature

• Carbon steel / low alloy steel: 1500–1600°C

• Cast iron: 1350–1450°C

• Non-ferrous alloys (copper/aluminum): 1200°C / 750°C

Using a uniformly high-grade refractory material regardless of alloy type can increase cost and reduce shell collapsibility, making shakeout difficult.

A rational selection of refractory materials based on alloy type is essential for achieving optimal cost-performance balance in investment casting production.

Industry Insight: Optimizing Shell Material Combination

The globally common silica sol shell system typically uses:

• Zircon sand (face coat)

• Calcined kaolin or aluminosilicate refractory (backup layers)

However, improvements in material selection and formulation can further enhance:

• Shell permeability

• High-temperature strength balance

• Knock-out efficiency

• Overall production cost reduction

Key Technical Comparison Table

Conclusion

Silica sol shell technology remains a cornerstone of modern precision investment casting. Its superior surface quality and process stability make it indispensable for high-end applications. However, its cost and de-shelling challenges highlight the importance of optimized refractory material selection.

By scientifically matching refractory materials with alloy types and casting requirements, manufacturers can significantly improve casting quality, production efficiency, and cost competitiveness, achieving the true balance of performance and economy in investment casting production.
