Fully Welded Stainless Steel Pneumatic / Electric Ball Valve Part

Type: Casting Carbon Steel Parts
FOB Price:US $1-100/ Set
Min. Order Quantity:1Set
Supply Ability:10tons per Month
delivery time:30days
Weight:0.05kg-300kg
Port:China main port
Payment Terms: L/C,T/T, Western Union
Place of Origin: Liaoning, China (Mainland)

Quantity:
  • OEM
  • DS

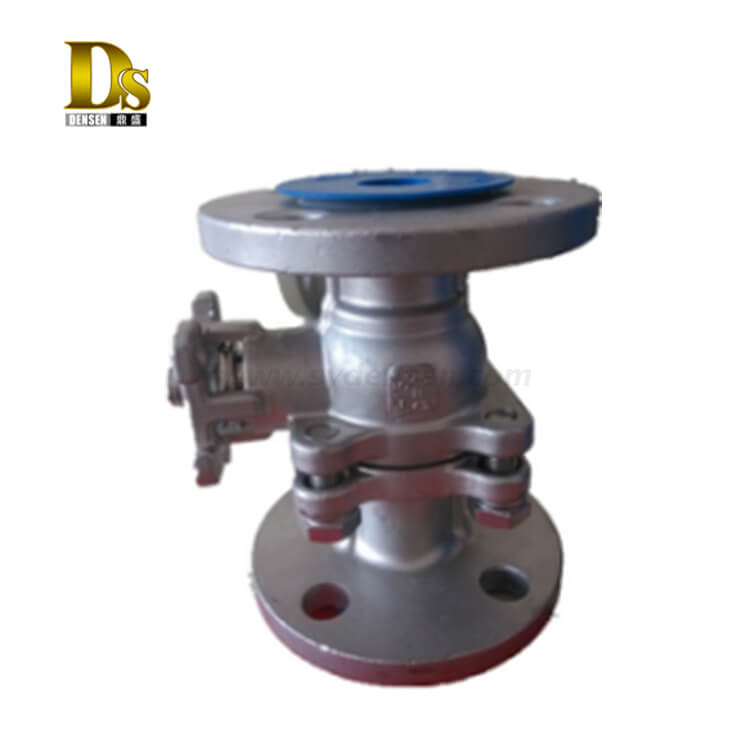

Fully Welded Stainless Steel Pneumatic / Electric Ball Valve

Product description

DescriptionFully welded stainless steel pneumatic / electric ball valve
Type Ball valve, Butterfly valve, Sluice valve
ApplicationAircraft industry, Hydraulic electrogenerating, Wind power, Tooling, Metallurgy, mine industry etc.
ProcessingSand casting, Investment casting
MaterialCast steel ;stainless steel (304/316/304L);cast iron;carbon steel;copper

ductile cast iron
Weight Ranges0.05-300kg
TolernaceControlled by ISO 8006 CT10-14
Design SupportPro-E, UG,SolidWorks,AutoCad, PDF
Quality ControlMaterial, Dimension,Performance,inside defects,Balance test
StandardASTM,DIN,JIS,ISO 8062,GB standards

Product

ball valve11

ball valve12

ball valve13

ball valve 14

Declaration:

 Products shown herein are made to the requirements of specific customers and are illustrative of the types of manufacturing capabilities available within Densen group of companies.

Our policy is that none of these products will be sold to 3rd parties without written consent of the customers to whom the tooling, design and specifications belong.



No.

Part name

Material

1

Valve cover

A105

F304

LF2

2

Coil spring

Inconel X750

3

Spring seat

A105

F304

LF2+ENP

4

Seat

A105+ENP

F304

LF2+ENP

5

O-ring

NBR/VITON

6

Sealing ring

RPTFE/Molon/Teflon

7

Lining

A105+ENP

F304

LF2+ENP

8

Ball

A105+ENP

F304

LF2+ENP

9

Body

A105

F304

LF2

10

Packing gland

F6a

F304

F304

11

Packing gland

A105

F304

LF2

12

Thrust bearing

LSS304

13

Valve neck

A105

F304

LF2

14

Stuffing box

A105

F304

LF2

15

Stem

F6a

F304

F304

16

Extension tube connectiong plate

A105

F304

LF2

17

With sleeve

A105

F304

LF2

18

Thrust bearing

SS304

19

Gland

A105

F304

LF2

20

Disk drive connected

A105

F304

LF2

21

On stem

F6a

F304

F6a

22

Extension tube

A105

F304

A105

23

Extensions bar

A105

F304

A105

24

Nut

A194 2H/2HM

A194 8

A14 2H/2HM

25

Stud

A193 B7/B7M

A193 B8

A193 B7M

26

Pin

SS304

27

Turbine head

Assemblies


About our Company

Shenyang New Densen Casting and Forging Company is the sales company of Shenyang Densen Group of Companies. Features of New Densen simply summarized as below:

1. Trusted supplier of steel, iron & non-ferrous components;

2. Extensive documented quality program in place.

3. Castings, forgings, stampings, machining, welding & fabrication services.

4. 9 related factories, over 50 joint-venture sub-contractors.

5. 25+ years of manufacturing experiences, 10+ years of exporting experience

6. 100% of products sold to overseas customers.

7. 50% of customer base is forturne 500 companies.



Densen Group Architecture:


Casting Service:

Casting is a manufacturing process in which a liquid material is usually poured into a mold, which contains a hollow cavity of the desired shape, and then allowed to solidify.

 New Densen offers multiple investment casting, sand casting, permanent casting, die casting, low pressure casting, ESR casting, lost foam casting, etc. Material can be handled include steel, iron, non-ferrous. Single component weight range is from 0.01Kg to 150 tons separately.


Forging Service:

Forging is a manufacturing process involving the shaping of metal using localized compressive forces. New Densen offers open die forging, closed die forging and ring forging services. Material can be steel, iron and non-ferrous. Material can be handled include steel, iron, non-ferrous. Single component weight range is from 0.1Kg to 50,000Kgs.


Forging Carbon Steel  Fig100 To 1520 Hammer Union with  Pipe Fittings for The Oil Industry

Stamping Service:

Stamping (also known as punching) is the process of placing flat sheet metal in either blank or coil form into a stamping press where a tool and die surface forms the metal into a net shape.

 New Densen-XBL has more than 60 sets stamping equipments, is the designed supplier for several famous bands automotive companies, has the full ability to offer whole processes from blanking, stamping, welding, to electrostatic spraying for worldwide customers.

stamping (2).jpg

Welding & Fabrication Service:

Welding Frabrication is the fabrication process of metal structures by cutting, bending, then assembling the components together through welding

 New Densen offers manual arc welding ,laser welding and robot welding etc. UT, MPT,RT,PT all are available used for inspection, WPS &PQR (Welding Process Specification& Procedure Qualification Records) before production is available under clients’ requirement.


 Machining Service:

Machining is any of various processes in which a piece of raw material is cut into a desired final shape and size by a controlled material-removal process.

New Densen-XBL has more than 60 sets precision machines incl. CNC center, boring, milling, lathing, etc., and more than 300 inspection instruments incl. 3 sets CMM with grade μm. Repeated tolerance can be maintained as 0.02mm. Meanwhile awarded by certificates ISO9001-2008; ISO/TS16949. New Densen-XBL specialized in high precise machining for small-middle-big metal components.



3rd Party Inspection:

New Densen worked as 3rd party inspection center besides its sister factories or sub-contractors' self inspection, Offers process inspection, random inspection and before delivedry inspection services for material, mechanical, inside defects, dimentional, pressure, load, balance, surface treatment,  visual inspection and test. Weekly project follow-up report together with pictures and videos, full quality inspection documentation available.

New Densen also designed as 3rd party inspection representative for several customers when their products made by other suppliers.


Application:


Forging Carbon Steel  Fig100 To 1520 Hammer Union with  Pipe Fittings for The Oil Industry

Sketches of sub-companies of Densen Group:

Forging Carbon steel Fig100 to 1520 Hammer Union with Pipe fittings for the Oil Industry
