Engineering Guide – Resolving Casting Porosity And Shrinkage

Porosity and shrinkage account for over 70% of structural scrap in precision aluminum, iron, and stainless steel castings. Eliminating these voids requires distinguishing between gas entrapment and solidification contraction to apply targeted shop-floor controls.

Defect Diagnostic Comparison

Diagnostic Feature	Gas Porosity	Solidification Shrinkage

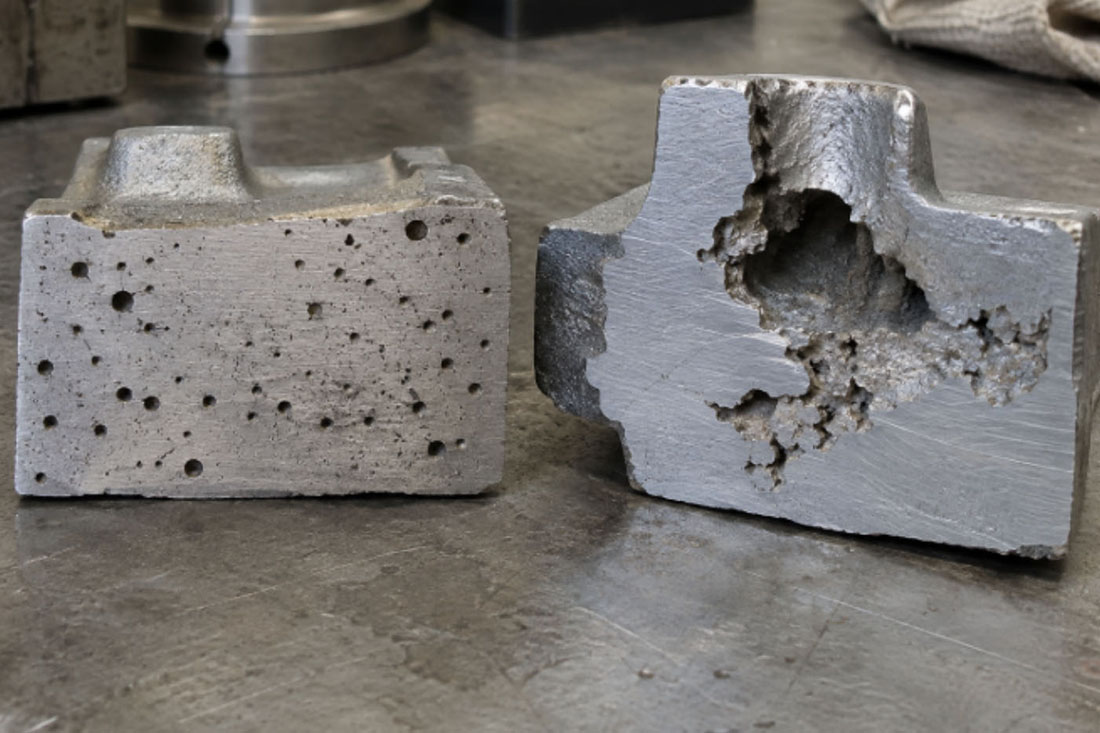

Visual Morphology	Smooth, spherical or oval internal voids	Irregular, rough, jagged, or dendritic cavities
Primary Location	Subsurface, high vent zones, turbulence pockets	Thermal centers, thick sections, last-solidified areas
Root Cause	Dissolved gas (hydrogen/air) or mold gas	Volume contraction without adequate liquid metal feeding
Primary Fix	Melt degassing, mold venting, laminar filling	Riser redesign, chills, directional solidification

Metallurgical Root Causes & Process Control

Gas Entrapment and Hydrogen Dissolution
High pouring temperatures and moist raw materials introduce dissolved hydrogen into molten aluminum and steel alloys. As the metal solidifies, gas solubility drops abruptly, creating smooth spherical pores. Inadequate mold venting forces trapped cavity air into the liquid stream during turbulent pouring.
Volumetric Contraction and Thermal Hot Spots
As molten metal transitions from liquid to solid, volume contraction creates localized micro-voids or macro-cavities if feeding channels freeze prematurely. Isolated thick walls, undersized risers, and rapid section transitions aggravate localized shrinkage.

Full-Cycle Prevention Protocol

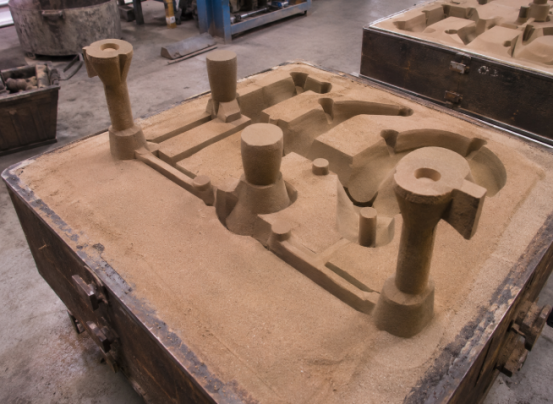

Mold & Gating Engineering: Design runner systems for non-turbulent, laminar flow. Position risers directly above heavy sections to maintain positive thermal gradients and enforce directional solidification.
Melt Cleanliness: Pre-heat charges and scrap. Execute rotary argon degassing and fluxing treatment to keep hydrogen levels below critical thresholds before pouring.
Thermal Management: Utilize internal chills or localized cooling lines around isolated hot spots to equalize cooling rates between thin and thick walls.
Non-Destructive Testing (NDT): Validate internal integrity using X-ray radiography (ASTM E155/E446 standards) and dye penetrant testing on critical machined surfaces.

Request an Engineering Consultation & DFM Analysis

Facing persistent internal voids or pressure-containment leaks in your cast components? Our engineering team provides complimentary Design for Manufacturability (DFM) reviews and MAGMA solidification simulations for high-precision OEM parts. Contact our foundry team today at contact@sydensen.com or submit your 3D CAD files online for a rapid technical assessment.
