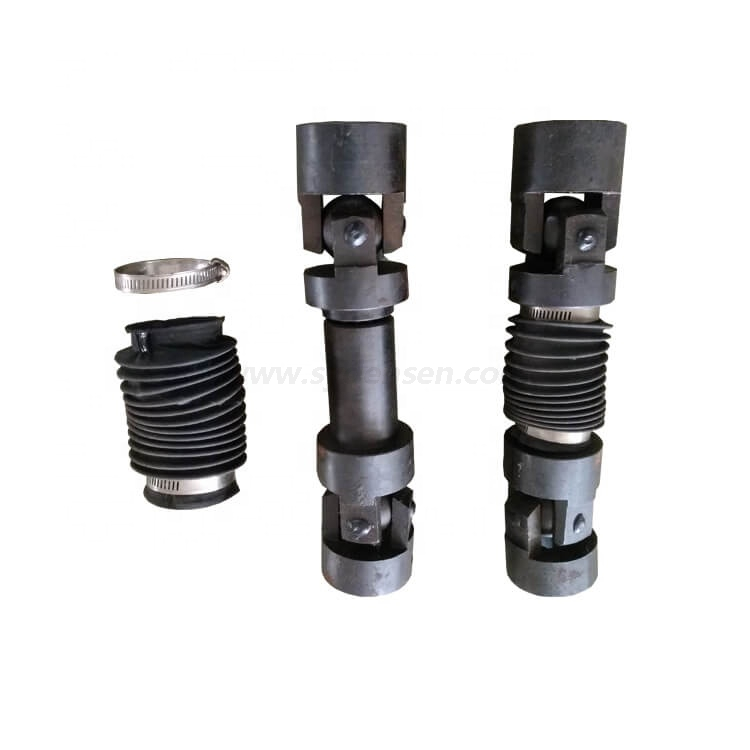

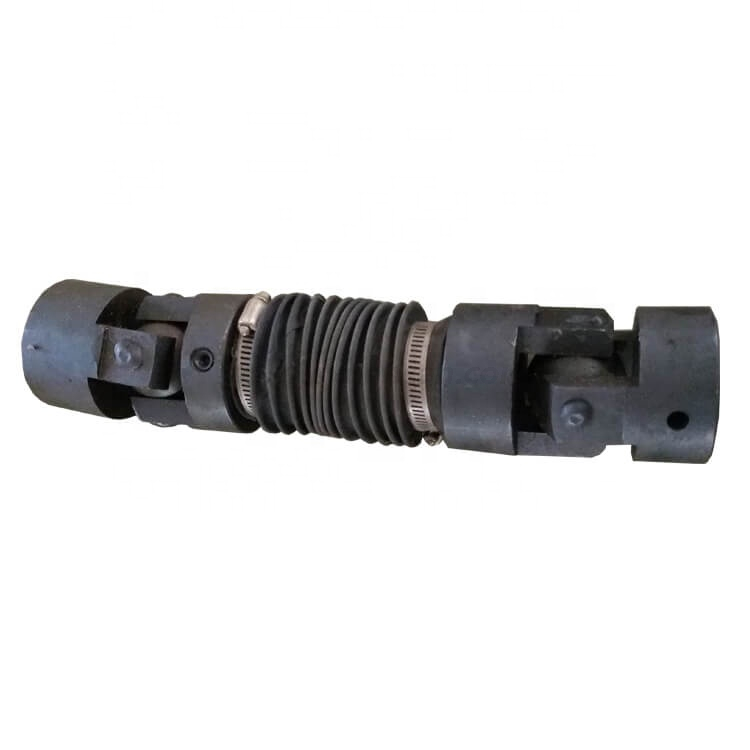

Densen customized universal coupling,ductile iron universal coupling,universal flexible shaft coupling

Place of Origin:Liaoning, China
Brand Name:Densen customized
Material:Steel
Standard or Nonstandard:Standard
Structure:Universal
Flexible or Rigid:Flexible
Applicable Industries:Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Energy & Mining, metallurgy/engineering
Color:Red,yellow, blue etc.

Quantity:
  • Customized
  • DS

Densen customized universal coupling,ductile iron universal coupling,universal flexible shaft coupling

Product Name Densen customized universal coupling,ductile iron universal coupling,universal flexible shaft coupling
DN mm 16~95mm
Rated Torque 6.3~1100 N·m
Allowable Speed 1000~500 N·m
Material 45#steel
Application Widely used in metallurgy, mining, engineering and other fields.



Product show


Company Information
Equipment


Application Case

Typical case of diaphragm coupling applied to variable frequency speed control equipment



JMB type coupling is applied to Daqing Oilfield Thermal Power Plant



According to the requirements of Daqing Electric Power Corporation, Daqing Oilfield Thermal Power Plant should dynamically adjust the power generation according to the load of the power grid and market demand, and carry out the transformation of the frequency converter and the suction fan. The motor was originally a 1600KW, 730RPM non-frequency variable speed motor matched by Shenyang Motor Factory. The speed control mode after changing the frequency is manual control. Press the button speed to increase 10RPM or drop 10RPM. The coupling is still the original elastic decoupling coupling, and the elastic de-coupling coupling after frequency conversion is frequently damaged, which directly affects the normal power generation.



It is found through analysis that in the process of frequency conversion speed regulation, the pin of the coupling can not bear the inertia of the speed regulation process (the diameter of the fan impeller is 3.3 meters) and is cut off, which has great damage to the motor and the fan.



Later, they switched to the JMB460 double-diaphragm wheel-type coupling of our factory (patent number: ZL.99246247.9). After 1 hour of destructive experiment and more than one year of operation test, the equipment is running very well, and there is no Replace the diaphragm. 12 units have been rebuilt and the operation is in good condition.


Other Application Case
