Advantages and Disadvantages of Gravity Casting and Low-Pressure Casting

Casting is a crucial process in aluminum product manufacturing. Among the various casting methods, gravity casting and low-pressure casting are two widely used techniques, each with its own set of advantages and disadvantages. This article provides a detailed comparison of these two processes.

1. Gravity Casting Process

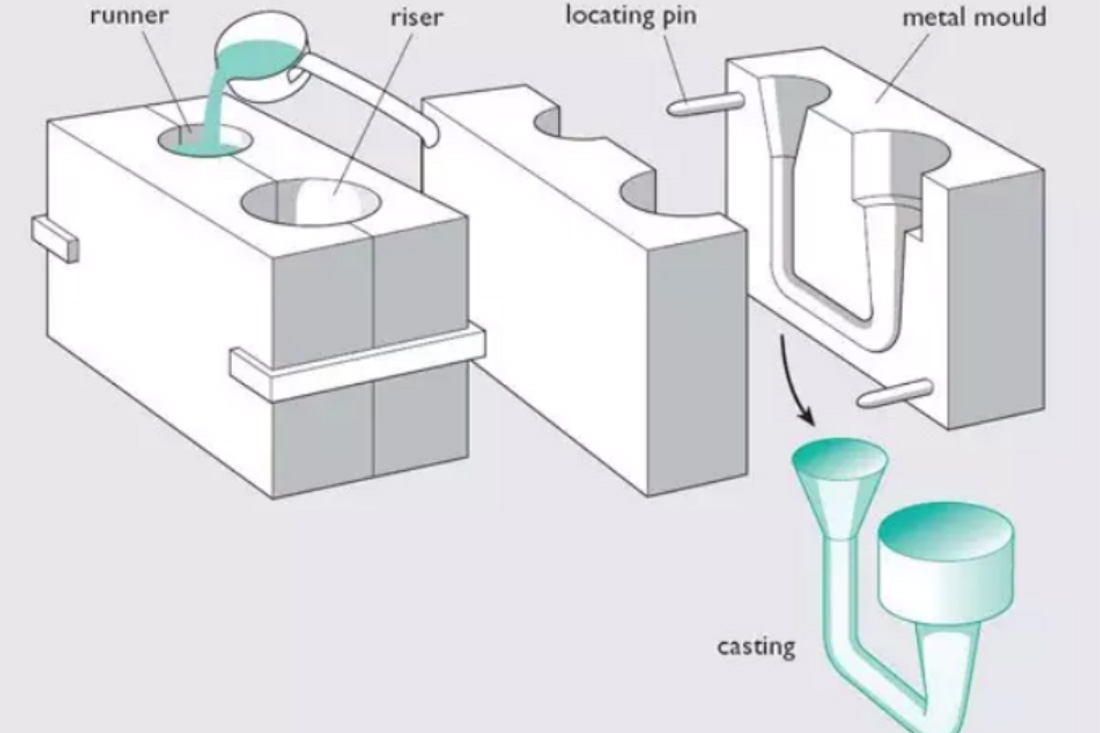

Gravity casting involves pouring molten aluminum directly into a mold using the force of gravity.

Advantages:

1. Cost-Effective: The tooling for gravity casting is relatively simple and less expensive compared to other casting methods.

2. High Production Efficiency: It significantly improves efficiency over traditional sand casting techniques.

3. High Molding Success Rate: The one-time molding success rate can exceed 90%.

4. Good Surface Quality: Finished products exhibit high precision and relatively smooth surfaces.




Disadvantages:

1. Limited Product Size: The process is typically used for smaller-sized products.

2. Small Boiler Volume: The molten aluminum volume is limited, restricting the single production output.

2. Low-Pressure Casting Process

Low-pressure casting involves injecting molten aluminum into a mold under controlled pressure to ensure complete filling and solidification.

Advantages:

1. High Pressure Application: The pressure can reach dozens of atmospheres, allowing for precise and detailed mold filling.

2. Versatility: Suitable for producing a wide variety of aluminum products.

3. Excellent Sealing Properties: Low-pressure casting ensures strong sealing, making it ideal for high-precision products.

4. High Molding Success Rate: Like gravity casting, it also boasts a high one-time molding success rate, enhancing overall production efficiency.

Disadvantages:

1. Higher Cost: The process requires more expensive tooling and maintenance.

2. Complex Operation: Skilled personnel are needed to manage the intricate operation process.

3. Boiler Volume Limitation: Similar to gravity casting, the volume of molten aluminum per batch is relatively small.




3. Key Differences Between Gravity Casting and Low-Pressure Casting

The primary distinction between these two processes lies in how the aluminum liquid enters the mold.

• Gravity Casting: Relies on natural gravitational force, pouring the molten aluminum from top to bottom.

• Low-Pressure Casting: Uses mechanical pressure to ensure complete and uniform mold filling.

Additionally, gravity casting is more cost-effective but has a narrower application scope and relatively lower efficiency. On the other hand, low-pressure casting, while more expensive, offers greater versatility and improved production efficiency.

4. Conclusion

Both gravity casting and low-pressure casting have their own strengths and weaknesses. When selecting a casting method, manufacturers must consider product characteristics, size, and specific requirements. Practical experience has shown that choosing the right casting process based on the given conditions can significantly enhance delivery time, production efficiency, and product quality.
